Wireless & Wired Stress ECG

Innovative, Powerful and Accurate Stress ECG Machines

As a PC-ECG technology pioneer, Norav Medical continues to innovate and provide powerful and accurate Stress ECG Machines that help you collect, analyze, and interpret all the ECG data you need to support your cardiovascular, hypertension, and diagnostic needs for more than 30 years.
Get a quote Explore Products

System upgrade!

Upgrade your old ECG device to the latest Stress ECG device and software
Which is easy to set up and can be used with any treadmill or ergometer that you may be currently using
Get a quote

High-quality Stress Test Data

You can acquire 12 & 6 lead high-quality stress test data using advanced algorithms and tools to analyze large numbers of ECG data quickly and meaningfully with the Norav advanced diagnostic quality PC-based stress ECG devices for patient care from prevention to rehabilitation.
Combined with our scalable and powerful ECG management system - NEMS, clinicians around the world depend on us for accurate, reliable results in cardiovascular diagnosis and hypertension management.
Arrhythmias
Coronary artery disease
Exercise blood pressure monitoring
Exercise Spo2 Monitoring
Exercise or surgical planning

Key Features

01.

High Resolution ECG Processing

  • Accurate ST-measurements
  • Arrhythmia detection with clean traces
02.

Versatility

Simple integration with HIS, EHR; interoperability with PACS, DICOM; and many export formats such as HL7

03.

Clean ECG Tracing

On-line filtering and automated baseline correction for clear and stable measurements

Stress ECG system solution

silhouette of a person with color ecg sensors
Stress ECG system solution
A compact design and easy operation make Norav Stress series ECG recorders the perfect choice for recording 3,12 lead ECGs with accuracy, consistency, and sanitation
ecg device Resting 1200HR-T
Software
Norav PC-ECG Stress software is ensuring the most accurate and reliable diagnosis and analysis.
mackbook Systems diagnostics
Algorithms
A unique set of proprietary filters and signal processing algorithms combine into the Norav software to provide superior ECG signal quality and accuracy.
Data Storage / Management
In conjunction with Web based NEMS ECG Management System, the data management and EMR integration provides remote access to ECGs from anywhere, anytime to enhance your workflow through extensive connectivity.

Norav’s Stress ECG Approach

A Holistic solution for Stress ECG test, Retrieve, View and Print ECGs.
Versatile PC-based ECG stress testing equipment and software with wired and wireless 12 lead ECG solutions that offer maximum flexibility, great usability, and excellent user experience.
shield icon
Security
check mark icon
Compliance
house icon
Diagnostics
database icon
Data storage
pie piece icon
Analytics
gear icon
Configuration
icon diagram
Reports
icon
Interpretation
Norav’s Stress ECG Approach
Norav’s Stress ECG Approach

Essential Capabilities

Durability
High-quality manufacturing technology and excellent raw materials guarantee long-lasting products with robust designs and water resistance.
Flexibility
Providing flexible adaptability to varying clinical and workflow requirements , compatibility to all types of Treadmills and Ergometers.
Easy to carry
Handheld design, small and lightweight, with a dedicated carry case.
Accuracy
Providing the best ECG signal Quality and automatic measurement and interpretation.
Quality
By operating under the highest standards, we are trusted by the world's largest hospitals.
Usability
Easy installation, intuitive, and user friendly.
Steamlining workflows
Electronic signatures and remote access are supported for review and confirmation of tests outside of the stress lab.
Management
All ECGs are managed in the web-based ECG management – NEMS-Web accessed anytime and anywhere. PDF reports easily upload to EMR.
Advantages
  • Automatic arrhythmia detection, print and capture
  • Duke Treadmill Score
  • HRR – Heart Rate Recovery Score
  • Standard as well as unlimited user programmed Stress Test protocols
  • CleanTrace – synthesized ECG rhythm which preserves actual heart rate, rhythm and beat shapes
  • Playback - Allows viewing episodes that might have been
Benefits
  • Full disclosure enables post processing of saved data
  • Interfaces with a variety of CPET systems
  • Automatic print during test
  • Plain or thermal paper printing options
  • Automatic control of a variety of treadmills and ergometers
  • Selectable Sync Lead *
  • Echo Ready - Trigger Out *
  • Blood Pressure Equipment Interface *
* With selected models

Stress Diagnostic Software

fda logo
mackbook Systems diagnostics
  • Accurate ST-measurements and automatic Arrhythmia detection with clean traces
  • Playback -Allows viewing episodes that might have been missed
  • On-line filtering and automated baseline correction for clear and stable measurements
  • HRR – Heart Rate Recovery Score Standard as well as unlimited user programmed Stress Test protocols CleanTrace – synthesized ECG rhythm which preserves actual heart rate, rhythm and beat shapes

Stress Architecture

Connect
Medical Treadmills
All types
Medical Ergometers
All types
Acquire
1200W
6 and 12 Leads
1200HR
12 Leads
1200HR-T
12 Leads
1200S
12 Leads
NR-1207-3
6 and 12 Leads
NR-1207-E
6 and 12 Leads
Analyze
PC-ECG Stress
The ultimate Stress test Analysis solution
Configured report templates
Unlimited exercise protocols
DICOM Modality Worklist
HL7 Interface
Remote Analysis / Uploader
Manage & Share
NEMS-Web
Wes based powerful ECG Management system, including mobile across services and organizations
Multi Sites & Users
Unlimited Archive and History
ECG Acquisition and Reporting
Enhanced Security & Data Protection

4 Tips How to Optimize ECG tests for Improved Interpretation & Highly Accurate Results

Skin preparation

Any ECG exam must begin with skin preparation. Residues and oils on the skin impede the transmission of the electoral signal, lowering the test’s quality. Shaving the region, washing it with alcohol, and massaging it with a towel are all good ways to improve the signal.

Electrode placement

Electrodes that are misaligned or improperly positioned will reduce the quantity of signal generated and result in a lower-quality report. It’s also crucial to consider the patient’s gender and body type, as well as how to adjust placement based on their specific circumstances.

Quality of the electrode

Even the best skin preparation might be compromised if you use subpar equipment. You should keep the electrodes in their pouch before use, check the expiration date, and avoid storing them in too warm areas, in addition to obtaining high-quality equipment.

Prepare the patient

More than physical equipment is required to obtain a high-quality ECG. It’s possible that your patient’s nervousness, movement, coldness, or talking will influence the study’s quality. It will go a long way to giving a quality test if you are clear about what you want and put the patient at ease.

Stress ECG lead placement with 10-electrode cable

AAMI labels
RA and LA electrodes should be placed just below the right and left clavicle.
RL and LL electrodes should be placed on the lower edge of the rib cage,
or at the level of the umbilicus at the mid-clavicular line.
V1
Fourth intercostal space at the right border of the sternum
V2
Fourth intercostal space at the left border of the sternum
V3
Midway between locations V2 and V4
V4
At the mid-clavicular line in the fifth intercostal space
V5
At the anterior axillary line on the same horizontal level as V4
V6
At the mid-axillary line on the same horizontal level as V4 and V5
chest x-ray chest x-ray
IEC labels
R and L electrodes should be placed just below the right and left clavicle.
N and F electrodes should be placed on the lower edge of the rib cage, or at the level of the umbilicus at the mid-clavicular line.
C1
Fourth intercostal space at the right border of the sternum
C2
Fourth intercostal space at the left border of the sternum
C3
Midway between locations C2 and C4
C4
At the mid-clavicular line in the fifth intercostal space
C5
At the anterior axillary line on the same horizontal level as C4
C6
At the mid-axillary line on the same horizontal level as C4 and C5
chest x-ray chest x-ray
RA and LA electrodes should be placed just below the right and left clavicle.
RL and LL electrodes should be placed on the lower edge of the rib cage,
or at the level of the umbilicus at the mid-clavicular line.
V1
Fourth intercostal space at the right border of the sternum
V2
Fourth intercostal space at the left border of the sternum
V3
Midway between locations V2 and V4
V4
At the mid-clavicular line in the fifth intercostal space
V5
At the anterior axillary line on the same horizontal level as V4
V6
At the mid-axillary line on the same horizontal level as V4 and V5
R and L electrodes should be placed just below the right and left clavicle.
N and F electrodes should be placed on the lower edge of the rib cage, or at the level of the umbilicus at the mid-clavicular line.
C1
Fourth intercostal space at the right border of the sternum
C2
Fourth intercostal space at the left border of the sternum
C3
Midway between locations C2 and C4
C4
At the mid-clavicular line in the fifth intercostal space
C5
At the anterior axillary line on the same horizontal level as C4
C6
At the mid-axillary line on the same horizontal level as C4 and C5
chest x-ray
chest x-ray

NEMS-Web based ECG management system

fda logo
  • Web-based Interface
  • Multi Sites & Users
  • Unlimited Archive and History
  • ECG Acquisition and Reporting
  • HIPAA & GDPR Compliance
  • Enhanced Security & Data Protection
  • Serial ECG comparison
  • Integration with Hospital Information Systems ( Electronic Health Records (EHR), Cardiology Information Systems via HL 7, DICOM, and customized WEB Services
  • Central Database infrastructure for networked organizations

Stress ECG Products

Stress Medical Grade Ergometers

  • Heavy-Duty
  • Reclined Ergometers
  • Universal Interfaces
Learn more

Stress Medical Grade Treadmills

  • Heavy-Duty
  • Programmable Controller
  • For sports medicine
Learn more

Stress ECG Carts

  • Sturdy frames
  • Caster wheels
  • Aluminum profiles
Learn more

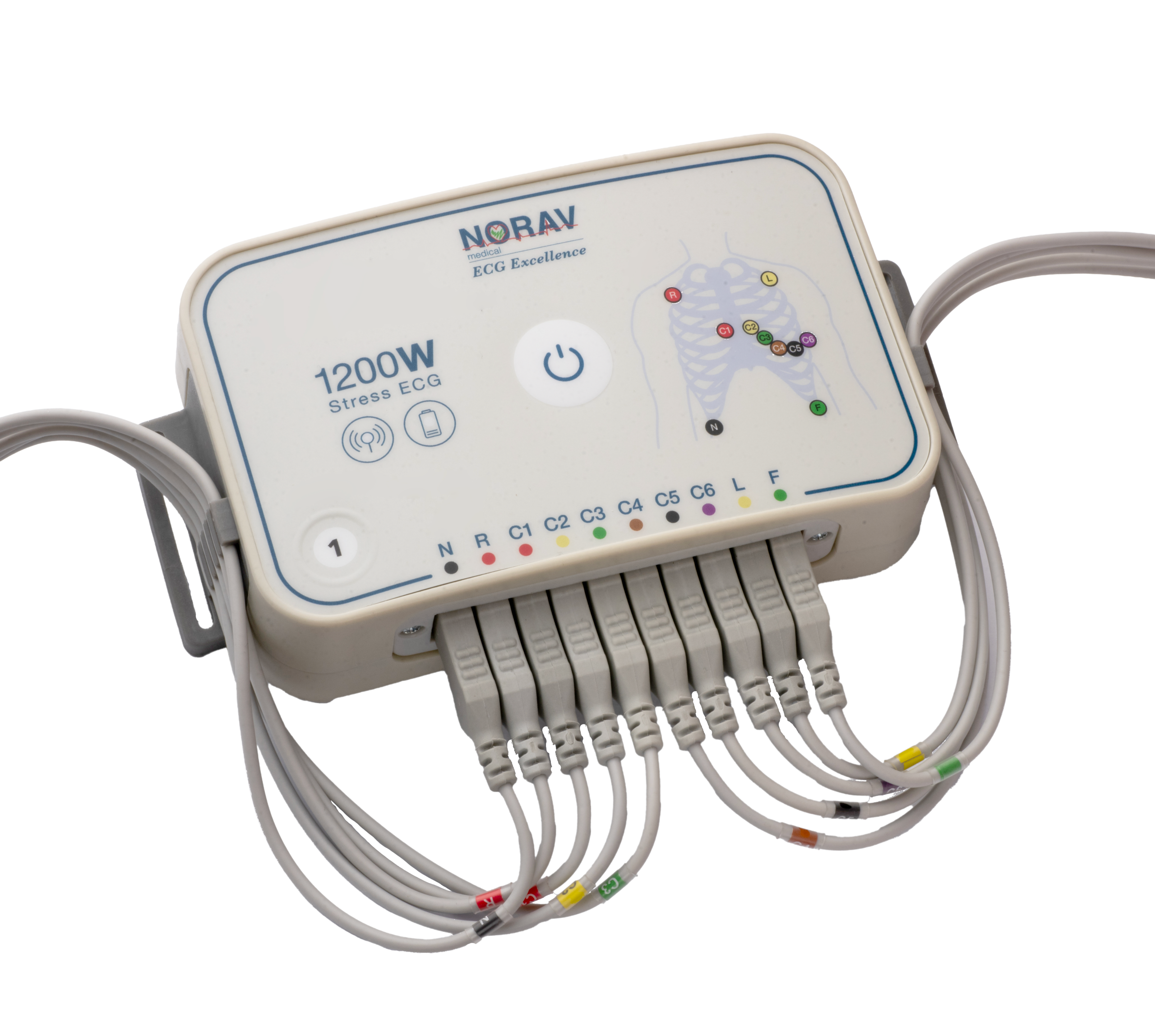

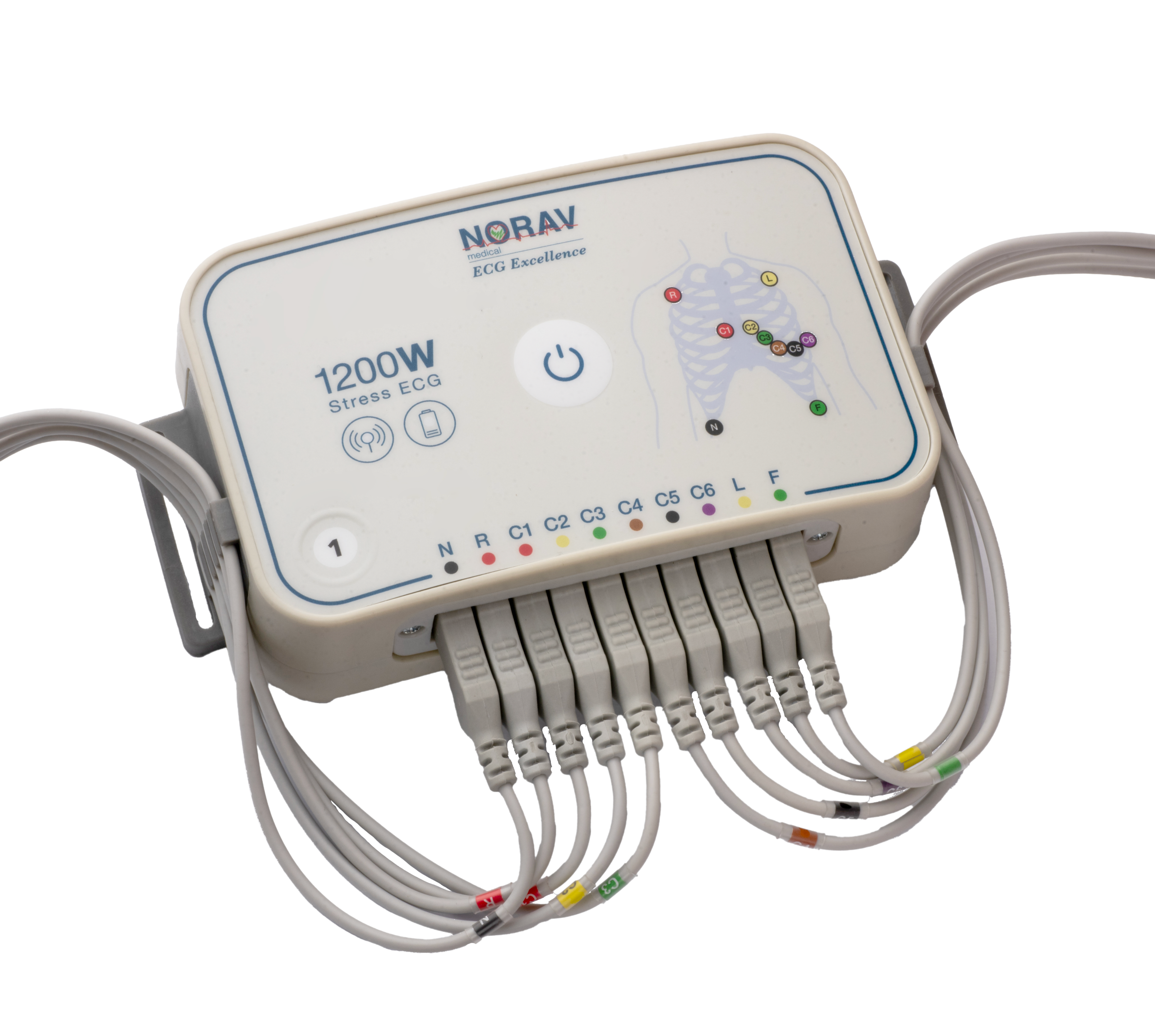

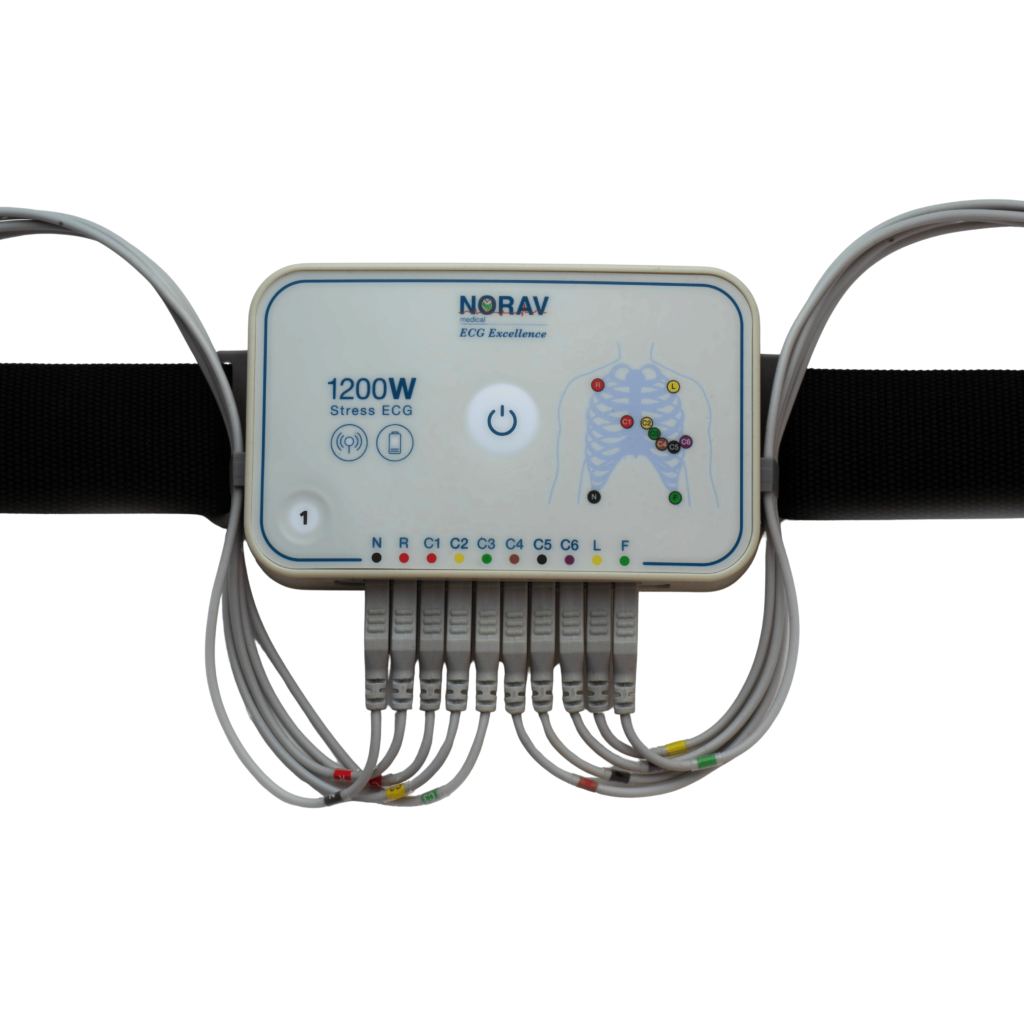

Stress 1200W – Ultimate Wireless Stress ECG

  • 12 Lead ECG
  • Radio Frequency Wireless Stress System
  • Accuracy at High Sampling Rate
Learn more

Stress 1200HR – High-Resolution ECG

  • 12 Lead ECG
  • High-Resolution ECG
  • Accuracy at High Sampling Rate
Learn more

Stress 1200S – Classic PC-ECG

  • 12 Lead ECG
  • Classic PC-ECG
  • Accuracy at High Sampling Rate
Learn more

Stress NR-1207-3 All in one ECG

  • 3,12 Lead ECG
  • High-Resolution ECG
  • Accuracy at High Sampling Rate
Learn more

Stress NR-1207-E Mobile Wireless ECG

  • 12 Lead ECG
  • High-Resolution ECG
  • Accuracy at High Sampling Rate
Learn more

Stress Tango M2 Blood Pressure Monitor

  • BP monitoring
  • Motion-tolerant
  • Reliable & Automated
Learn more

NSPO2-02 Exercise SPO2

  • PureSAT® SpO2 technology
  • Compact and wrist-worn design
  • Up to 44 hours battery life
Learn more

Stress Medical Grade Ergometers

  • Heavy-Duty
  • Reclined Ergometers
  • Universal Interfaces
Learn more

Stress Medical Grade Treadmills

  • Heavy-Duty
  • Programmable Controller
  • For sports medicine
Learn more

Stress ECG Carts

  • Sturdy frames
  • Caster wheels
  • Aluminum profiles
Learn more

Stress 1200W – Ultimate Wireless Stress ECG

  • 12 Lead ECG
  • Radio Frequency Wireless Stress System
  • Accuracy at High Sampling Rate
Learn more

Stress 1200HR – High-Resolution ECG

  • 12 Lead ECG
  • High-Resolution ECG
  • Accuracy at High Sampling Rate
Learn more

Stress 1200S – Classic PC-ECG

  • 12 Lead ECG
  • Classic PC-ECG
  • Accuracy at High Sampling Rate
Learn more

Stress NR-1207-3 All in one ECG

  • 3,12 Lead ECG
  • High-Resolution ECG
  • Accuracy at High Sampling Rate
Learn more

Stress NR-1207-E Mobile Wireless ECG

  • 12 Lead ECG
  • High-Resolution ECG
  • Accuracy at High Sampling Rate
Learn more

Stress Tango M2 Blood Pressure Monitor

  • BP monitoring
  • Motion-tolerant
  • Reliable & Automated
Learn more

NSPO2-02 Exercise SPO2

  • PureSAT® SpO2 technology
  • Compact and wrist-worn design
  • Up to 44 hours battery life
Learn more

Stress ECG Accessories

man and woman diagnostics on cardio machines

Cycle Ergometers

Medical-grade ergometer exercise bikes developed especially for use in ECG Cardiac Stress tests. Can be controlled by Norav Software or independently.

Accessories Ergometers bike Learn more
A girl undergoes an ECG test on a treadmill

Medical Grade Treadmills

Various heavy-duty medical-grade treadmills designed exclusively for Stress ECG tests. Controlled by Norav Software or independently.

Accessories Ergometers track Learn more

ECG Stress Carts

Various robust cart systems that combine stability, storage, and power connectivity. Ideal for use with Stress ECG Systems.

Learn more

Comparison Table

Frequently Asked Questions

Common questions

What Is A Stress ECG Test?

ECG stress tests, also known as exercise electrocardiograms, treadmill tests, graded exercise tests, exercise ECG,  ETT, or stress EKGs, evaluate how the heart responds to exercise. Exercise is accomplished either by walking on a medical treadmill or pedaling on a medical ergometer. As you progress, the challenge will increase. An electrocardiogram, blood pressure, and heart rate will be monitored throughout the procedure.

Where and how can I purchase Norav Stress ECG?

Norav products are available worldwide via the regional dealer’s network. Contact Norav offices for more information

Does the Norav Stress ECG system have medical regulatory approvals such as FDA a?

Yes, Norav products has the FDA regulatory approval. Contact Norav offices for more information

Norav Stress ECG Devices

How are Norav PC-ECG devices connected to the computer?

NR-series models are Bluetooth enabled, 1200W utilize the Norav-proprietary wireless, models 1200S and 1200HR-T are USB connected

What kind of battery is used in Norav wireless ECGs?

AA size, non-rechargeable Alkaline or NiMH rechargeable batteries

Can I connect my Stress ECG device with the ultrasound machine for Echo-Stress?

Yes, models 1200W and 1200HR-T are including the Analog Out for transmit the live ECG signal to the ultrasound machine

Norav PC-ECG Stress Software

Can I control my old treadmill by Norav Stress ECG system?

Yes, Norav Stress ECG software can control most of well-known brand treadmills and ergometers such as Trackmaster, Ergoline, Lode etc.

Can I customize the final report to match my needs?

Yes, the PC-ECG Stress system contains wide list of built-in as well the user-editable report templates.

Check out our latest news and articles

News & Media

5 Leads derived to 12 Leads in Android & Windows

12 Leads Derived from a 5-electrode Cable! Fast and simple cable attachment with only 5 leads, resulting in 12 “derived” (calculated) leads. *should not be used for diagnostic interpretation.

Learn more
News & Media

Centralized Control of Exercise Devices in NM-700 Telemetry software

An all-new version of NM-700 software, featuring direct control of exercise devices over speed, load, angle, and slope for ultimate customization and precise results.

Learn more
chest and back drawing Blog

15-lead Capability for Resting ECG

High resolution Resting ECG now also with 15-leads

Learn more

Contact Us

    Thank you!

    We will contact you asap!

    We are here

    USA

    601 N. Congress Ave. Unit 105, Delray Beach FL 33445

    Germany

    Christof-Ruthof-Weg 10, D55252 Mainz-Kastel
    Fax: (+49) 6134 567983-14

    Japan

    株式会社グッドケア 〒460-0026 愛知県名古屋市中区伊勢山1-1-1 伊勢山ビル7B
